| Scope of Application
This user manual describes the performance specifications, operating conditions, and warnings of the HS-L05K-E1-V01 All-in-One ESS Cabinet series.
This user manual is applicable only to the HS-L05K-E1-V01 series All-in-One ESS Cabinet.

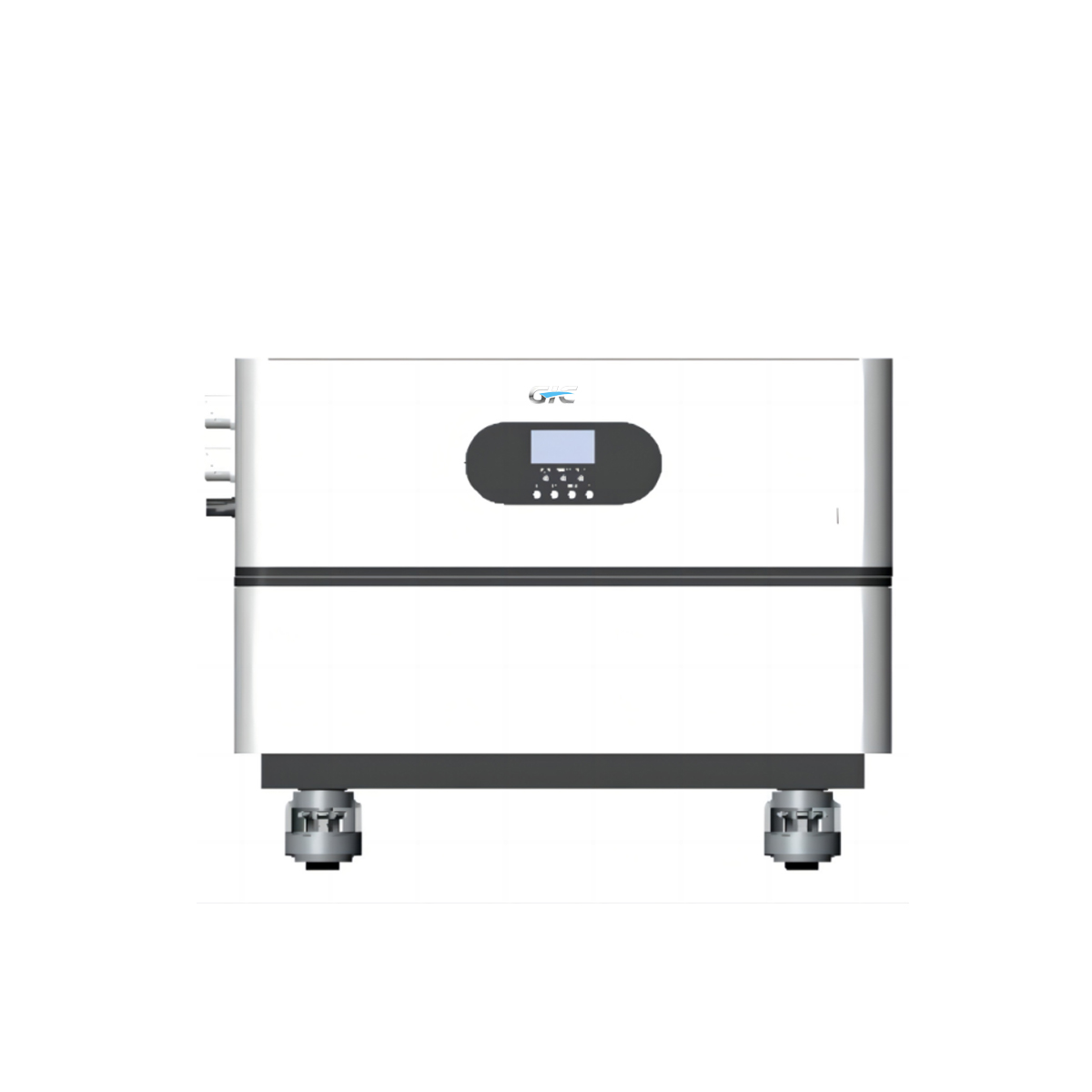

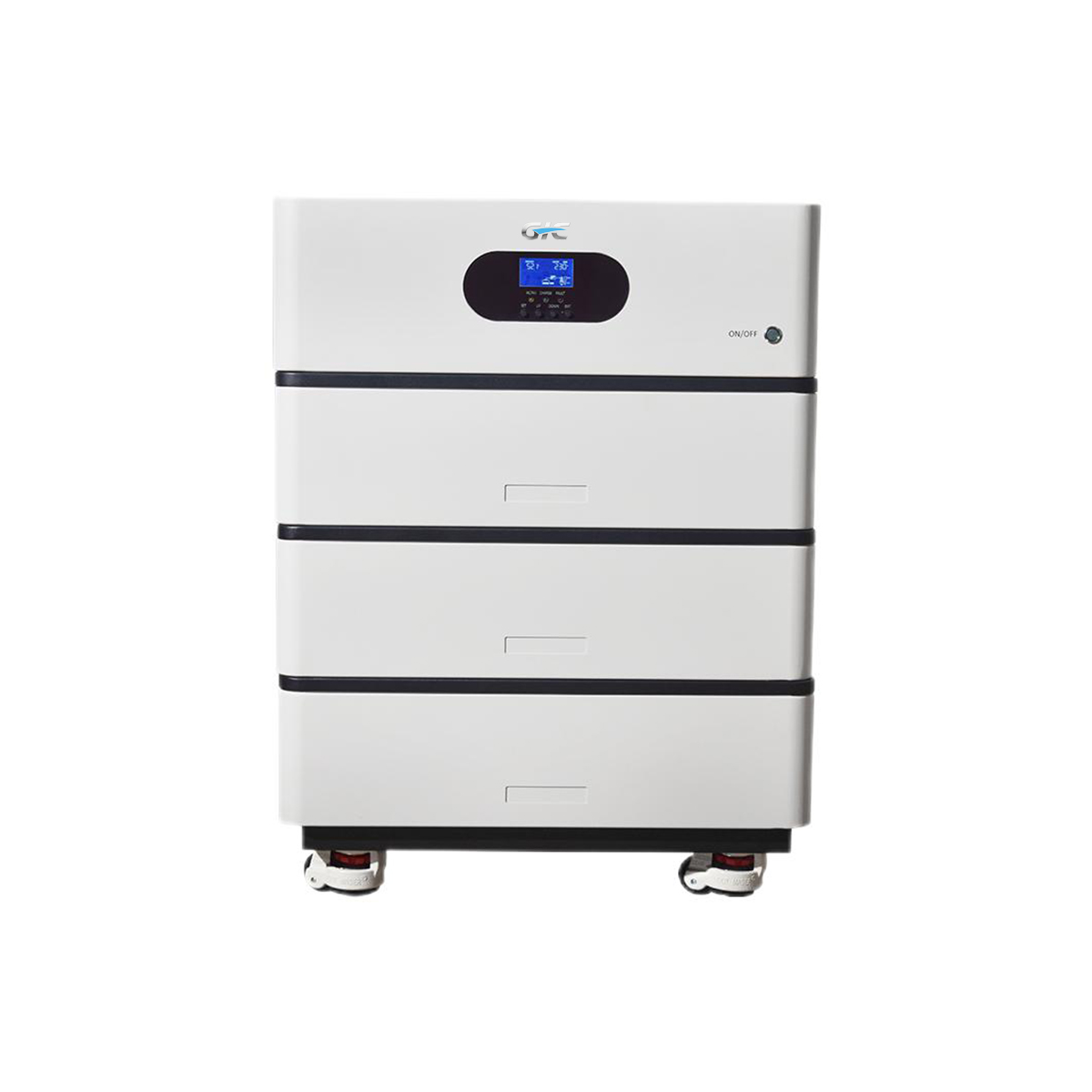

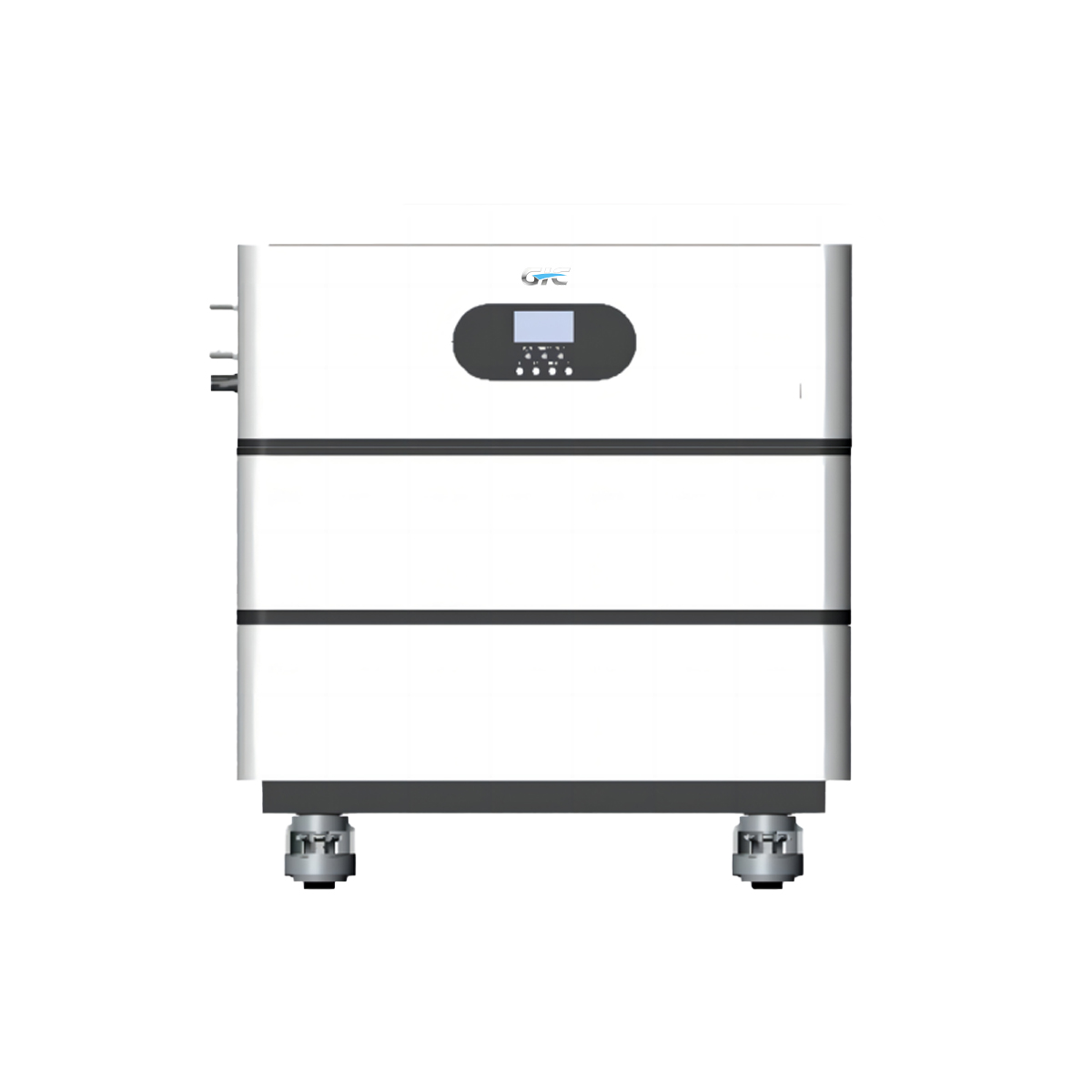

The HS-L05K-E1-V01 all-in-one machine product consists of a photovoltaic energy storage hybrid inverter, an energy storage battery module, a wireless communication module, or a display screen. It can be connected to photovoltaics to form a photovoltaic power generation and system. Its main function is to convert the DC power of photovoltaics and batteries into AC power and output it to the load for power supply. The system is equipped with EMS (Energy Management System) and BMS (Battery Management System) to achieve data monitoring, warning, and control of HS-L05K-E1-V01.
The system can be used in Off-Grid and On/Off Grid Hybrid Solar systems, suitable for home users,small agriculture, small business, electric vehicle charging and other application scenarios.

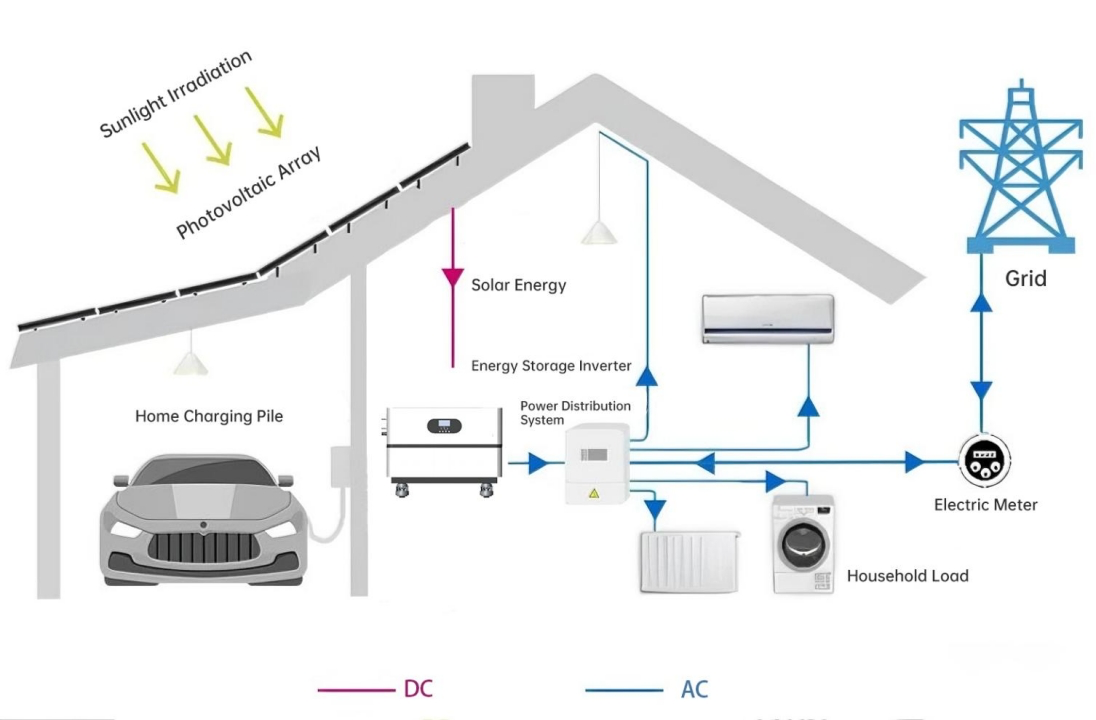

Application scenario diagram
| PV energy storage inverter HQ5500
Model | HQ5500 |
Inverted output | |
Inverter output | 5,500W |
Maximum peak power | 11,000W |
Rated output voltage | 230Vac(L/N/PE Single-phase) |
Load bearing motor capacity | 4HP |
Rated frequency | 50/60Hz |
Output waveform | Pure Sine Wave |
Switching time | 10ms ( Typical value) |
Battery | |
Battery type | Lithium Ion Battery |
Rated battery voltage | 51.2Vdc |
Voltage range | 40-60Vdc |
Max PV charging current | 100A |
Maximum mains power/generator charging current | 60A |
Maximum mixed charging current | 100A |
Photovoltaic input | |
MPPT paths | 1 |
Maximum Input Power | 6,000W |
Maximum input current | 22A |
Maximum open circuit voltage | 500Vdc |
MPPT operating voltage range | 120～450Vdc |
Mains/generator input | |
Input Voltage | UPS mode：170~280Vac APL mode：90~280Vac |
Input frequency range | 50/60Hz |
Bypass overload current | 40A |
Efficiency | |
MPPT tracking efficiency | 99.9% |
Maximum efficiency of battery inverter | 92% |
Size | 627.99*475*190mm |
Weight | 22kg |
Protection grade | IP20. For indoor use |
Ambient temperature | -10~55℃ |
Noise | <60dB |
Cooling function | Intelligent air cooling |
Communication | |
Built-in interface | RS485 |
External module (optional) | Wi-Fi |
| Battery Box Parameter
Model | HQ-5kWh |
Type | LFP |
Input battery voltage range | 40-58.4V |
Rated voltage of battery pack | 51.2V |
Maximum charging/discharging current | 100A/50A |
Number of battery packs | 1 |
Battery power | 5.12kWh |
Size (length * width *height) | 600*475*167mm |
Weight | 52kg |
Interface | RS485 |
Protection grade | IP20 |
Operating temperature | -15℃~55℃ |
Noise | ＜30dB |
Statement | Each battery pack contains one battery with a bottom wheel and several batteries without a bottom wheel |
