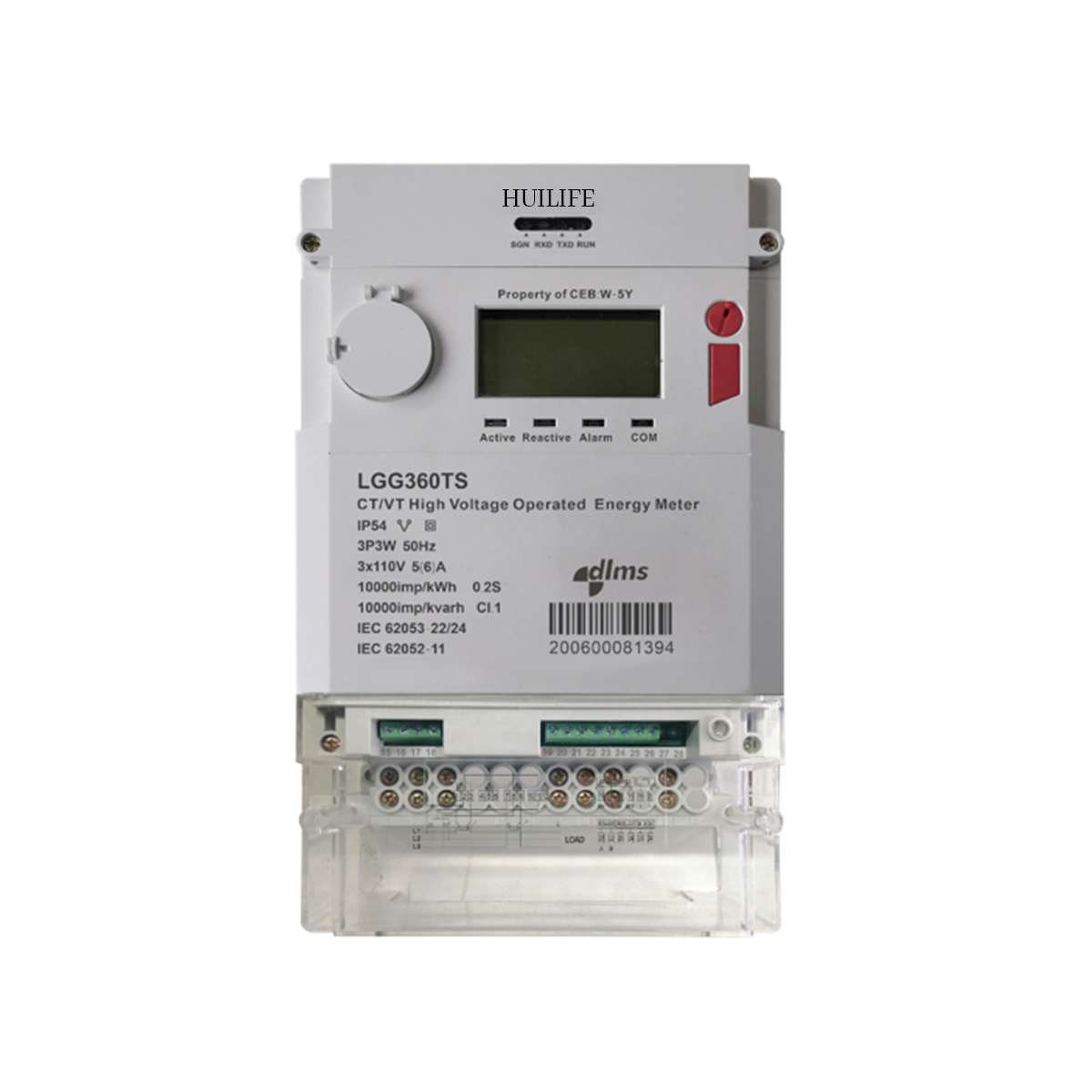

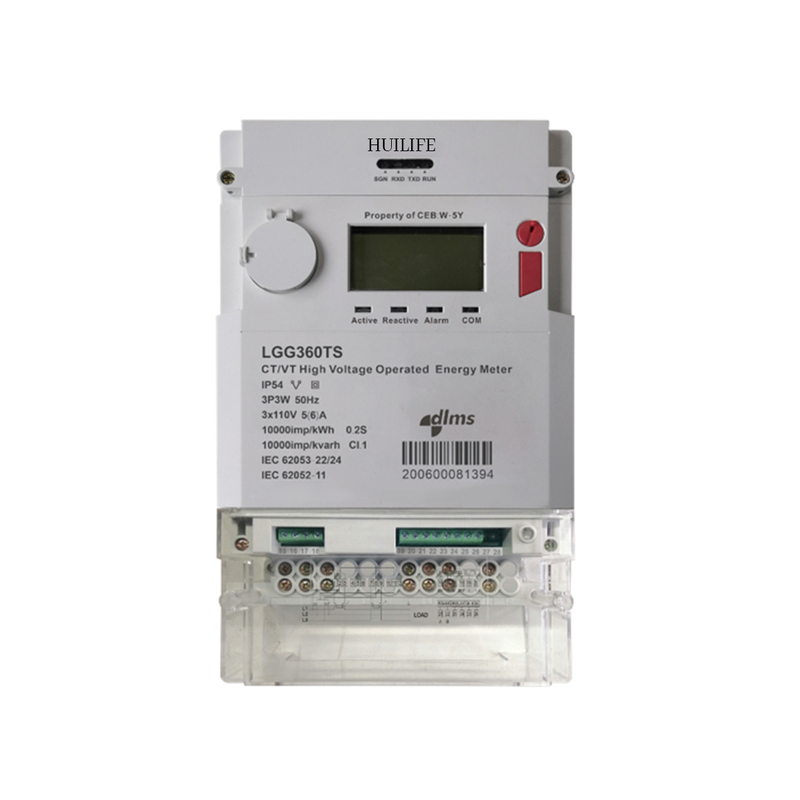

We manufacture the 360TS three-phase CTPT-operated smart energy meter for professional applications. Our device delivers exceptional performance for power grid monitoring and general load management. We produce versatile energy solutions that comply directly with the DLMS/COSEM open protocol. It provides an excellent platform for commercial and industrial customers.
Our meter tracks a massive array of system events securely. It logs up to one hundred standard event records with precise dates and times. The system also maintains up to two hundred fifty power grid event records. Operators can monitor occurrences like voltage loss or earth faults easily. We build this capability to ensure complete transparency across your electrical infrastructure.
We produce meters with robust tamper monitoring to protect utility revenue. The hardware supports up to eight different sealing positions for physical security. It detects unauthorized terminal cover removal and external strong magnetic interference instantly. You receive immediate self-protection responses under tamper control and malfunction conditions. These integrated defenses decrease line loss significantly.
Our smart meter ensures precise tracking for active and reactive power. It operates reliably with a rated voltage of 3x110V and a 50Hz frequency. The equipment achieves an accuracy class of CL0.2s for active energy measurements. It maintains class one accuracy for reactive power data collection. As a dedicated manufacturer, we calibrate every unit strictly before delivery.
We understand that software maintenance matters for long-term grid stability. Our commercial and industrial customers need efficient upgrade paths. The 360TS supports both local and remote firmware upgrade capabilities seamlessly. This fast and reliable solution minimizes downtime during essential system updates. It ensures your equipment always runs the latest security and operational protocols.
We manufacture the housing using high-impact polycarbonate materials for extreme durability. It is non-flammable, UV stabilized, and highly resistant to severe weathering. The protective casing achieves an IP54 protection class rating complying with IEC60529. Your field installations remain secure regardless of challenging environmental exposure. The insulation grade II standard adds another layer of operational safety.
360TS Technical Specification
Description | Value |
Rated voltage | 3x110V |
Operating voltage range | 70%Un~120%Un |
Rated Current and Starting Current | 3x5(6)A and 0.1%Ib |
Rated frequency | 50Hz |
Pulse Constant | 10000imp/kWh |
Accuracy Class | CL0.2s for Active |
Power Consumption | Voltage circuit ≤1W or 2VA, Current circuit < 0.2VA |
Battery and Life | Replaceable Lithium battery, life more than 15 years |
Tropical working temperature | -40°C to +70°C, Humidity is up to 95% |
EMC Performance | Impulse voltage > 8KV, AC voltage > 4KV, Surge voltage > 4KV, Electrostatic Discharge > 8KV&15KV etc. |
Protection class | IP54 comply with IEC60529, Insulation grade II |
Housing material | Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering |
Dimension | 266.5mmX165mmX80mm |
Category | Specification 1 | Specification 2 |
Event | >Up to 100 standard event records with occurred date and time: replace battery, low battery, clock sync, clock malfunction, NV memory malfunction, watchdog reset, meter malfunction, MD reset, high temperature, firmware upgrade etc. | >Up to 250 power grid event records with occurred date and time: power on, power off, under voltage, over voltage, over current, over load, current polarity reversal, missing potential, earth fault, voltage imbalance, voltage loss, voltage THD, current THD, power imbalance, reverse phase sequence, phase association disturbance, current short or CT open, low power factor, neutral disturbance etc. |
Anti Tamper | >Up to 8 sealing positions | >Up to 8 sealing positions |
>Terminal cover, meter cover and module cover sealing | >Terminal cover, meter cover and module cover sealing | |
>Detect meter cover removal, terminal cover removal, module cover removal, cabinet door open, external strong magnetic etc. | >Detect meter cover removal, terminal cover removal, module cover removal, cabinet door open, external strong magnetic etc. | |
Alarm | >Self-protection under tamper control, malfunction control, fire disaster control etc. | >Self-protection under tamper control, malfunction control, fire disaster control etc. |
Firmware Upgrade | >Alarms with LED and LCD | >Alarms with LED and LCD |
Monitoring | >Alarm can be configurable | >Alarm can be configurable |
>Local and remote firmware upgrade | >Local and remote firmware upgrade | |
>Fast and reliable solution | >Fast and reliable solution | |
>Collecting the temperature of meter cabinet | >Collecting the temperature of meter cabinet | |
>Power grid quality monitoring | >Power grid quality monitoring |
Utility companies face constant challenges regarding unauthorized power consumption. Our advanced anti-tamper solutions help utilities increase revenue effectively. The device identifies current polarity reversals and missing potential immediately. It alarms operators through LED and LCD indicators when anomalies occur. We supply equipment that actively guards your financial returns.
Integrating new measurement devices into existing infrastructure requires standardized communication. Our meters utilize the widely accepted DLMS/COSEM open protocol natively. This standard ensures interoperability with various central management software systems. You avoid proprietary lock-in when deploying our hardware across large networks. We design our meters to connect and communicate without unnecessary friction.
Effective load control prevents grid overloads and equipment failures. Our three-phase CTPT-operated smart energy meter monitors voltage and power imbalance constantly. It tracks critical metrics like total harmonic distortion for voltage and current. We manufacture these units to collect meter cabinet temperatures accurately. This granular data allows operators to balance loads proactively.
Large shopping centers and office buildings require precise energy tracking. Our device measures the heavy loads generated by commercial HVAC systems. Property managers use our power grid monitoring tools for accurate tenant billing. The high accuracy class ensures fairness in all electrical cost distributions. We supply meters that handle complex commercial environments effortlessly.
Manufacturing plants consume massive amounts of active and reactive power. Our meters operate perfectly within the 70% to 120% rated voltage range. They withstand the electrical noise and physical demands of factory floors. Factory managers rely on our load controlling features during peak production hours. As a supplier, we guarantee reliable performance for heavy industrial operations.
Power distribution companies install our equipment at critical substation nodes. The wide range of power grid event records assists in fault diagnosis. Operators review historical data to understand voltage sags or phase sequence reversals. We build these devices to function as vital intelligence nodes for utilities. Our meters deliver the field data required for stable grid maintenance.
We produce all our metering equipment within strictly controlled factory environments. Choosing a direct supplier of smart energy meter eliminates unnecessary middleman costs and communication delays. We oversee the entire production cycle from component sourcing to final testing. You receive authentic hardware directly from the original production source.
Our engineering team understands the intricate details of power distribution networks. We provide extensive technical backing for every device we deliver. You can contact us directly via email or phone for immediate assistance. We assist with deployment strategies and firmware upgrade procedures continuously. We partner with you to ensure long-term operational success.
We manufacture this model with a rated voltage of 3x110V. Its operating range securely extends from 70% to 120%, maintaining stability during grid fluctuations. Our design ensures consistent performance and measurement accuracy across various industrial conditions.
Our device implements robust physical security, supporting up to eight distinct sealing positions. It actively detects the removal of terminal or main covers and triggers immediate system alarms if cabinet doors are opened, completely securing your infrastructure.
Yes, our device fully supports remote firmware updates, eliminating the need for physical technician visits. It also permits local updates when connectivity is temporarily unavailable. This fast, reliable flexibility significantly reduces your ongoing maintenance costs.
We engineered this meter to fully comply with the DLMS/COSEM open protocol. This ensures smooth integration with various head-end systems and standardized data exchange, preventing proprietary lock-in and fitting perfectly into modern smart grid architectures.
We construct the housing from high-quality, non-conductive polycarbonate. This UV-stabilized material offers extreme durability, high impact resistance, and protection against severe weathering, reliably securing internal components for decades.
