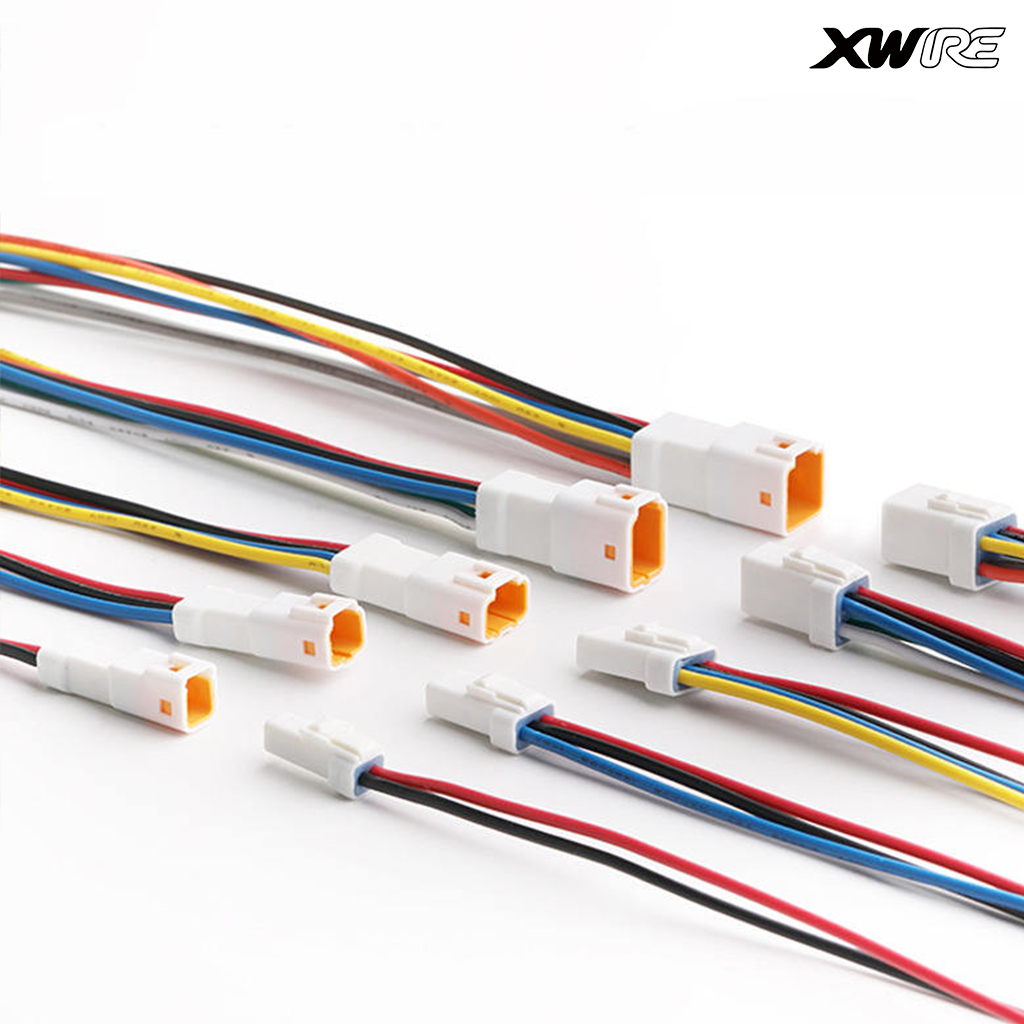

Battery chemistry dictates maximum energy density. However, harness layout dictates actual manufacturability and unit economics. Engineering teams often perfect their virtual models in CAD software. Then, they struggle severely during the transition to full-scale physical production. Why does this happen? Poorly optimized electrical pathways create immediate factory bottlenecks. They cause alarmingly high scrap rates. They also trigger constant testing false-positives on the factory floor.
You cannot treat electrical routing as an afterthought. Concurrent engineering of the electrical pathways and the production line is non-negotiable. Evaluating these designs upfront ensures seamless integration into your facility. It allows automated robotics and end-of-line (EOL) testing systems to function flawlessly. We will explore how smart layout choices accelerate throughput significantly. You will learn to evaluate traditional cables against modern contact systems. Finally, we will show you how to scale these principles across various energy storage applications.
Harness architecture directly determines the feasibility of automated robotic routing and connector mating.
Integrating Design for Manufacturability (DFM) principles reduces cycle times and mitigates manual assembly errors.
Transitioning to integrated Cell Contact Systems (CCS) offers automation advantages over traditional harnesses, subject to volume and cost evaluations.
A unified Battery Pack Production and Testing Equipment Solution is required to validate harness integrity without slowing throughput.
Automated machinery relies entirely on rigid, predictable movements. Conversely, flexible cables are inherently unpredictable. This creates a severe conflict on the factory floor. Robots struggle to grasp and route loose wires accurately. Consequently, manufacturers often fall back on manual labor for these complex tasks. This reliance on manual intervention creates an immediate factory bottleneck.
Manual routing introduces significant human variability into the production process. Operators route cables slightly differently every single time. As operator fatigue sets in during a long shift, precision drops even further. This unpredictability destroys stable Takt times. It makes factory capacity planning nearly impossible. Furthermore, messy layouts increase the risk of dangerous pinch points. When workers attach and seal the main external enclosure, stray wires often get crushed. This hidden damage can cause immediate short circuits. In worst-case scenarios, it leads to dangerous thermal runaway events weeks later.
What does a production-ready layout actually look like? It features extremely precise dimensional tolerances across all axes. It uses pre-formed routing channels to guide cables safely around hot components. You will often see integrated strain relief mechanisms embedded directly into the design. These protect delicate terminal joints from harmful mechanical stress during operation. Implementing these features stabilizes throughput metrics immediately. You eliminate guesswork from the operator's daily tasks entirely. This approach bridges the gap between theoretical engineering and manufacturing reality. You gain predictable cycle times. You also ensure a structurally safer final product.

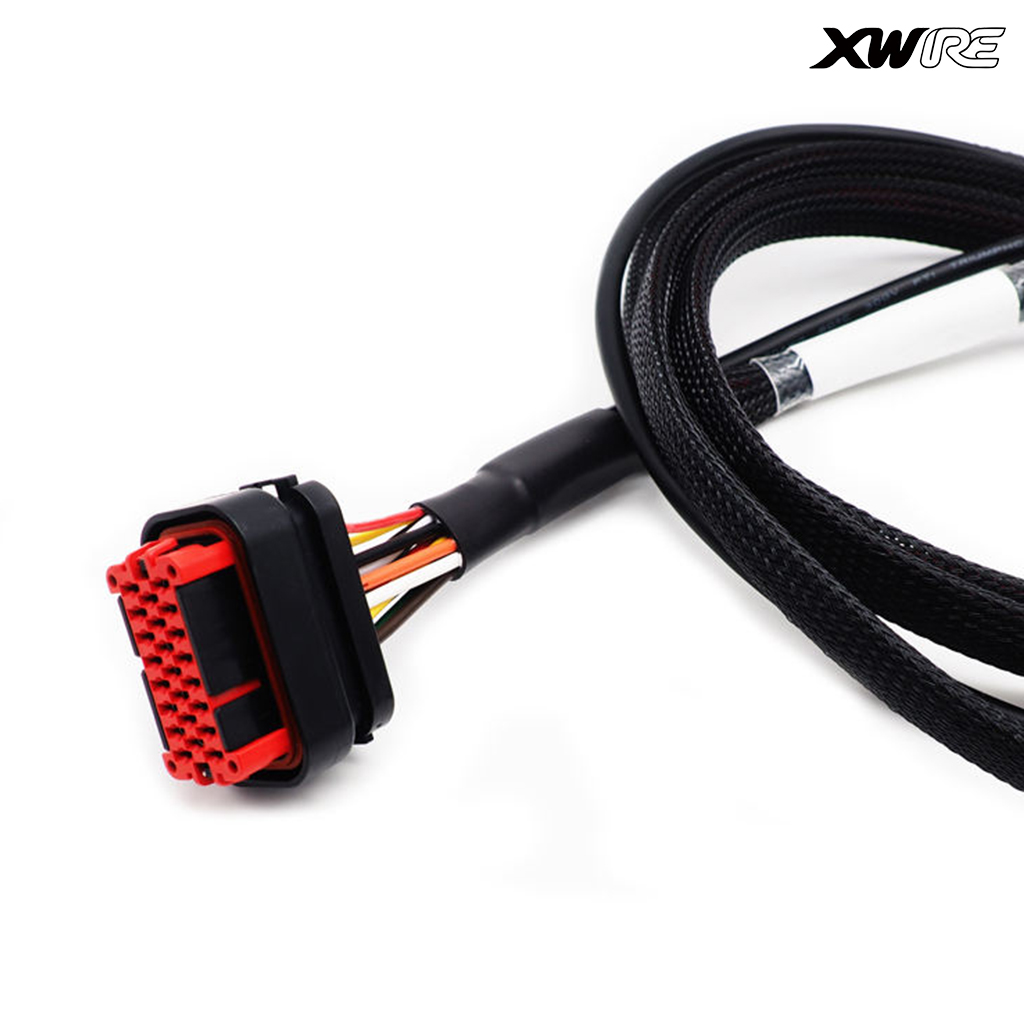

We must apply Design for Manufacturability (DFM) principles early. Evaluating the relationship between the Battery Pack Assembly Line and Wiring Harness reveals numerous optimization opportunities. First, you must evaluate connector selection carefully. Standard locking connectors demand precise human dexterity to mate properly. They slow down automated operations significantly. Instead, specify self-aligning, blind-mate connectors. They feature chamfered edges for easy insertion. They allow robotic arms to snap connections together effortlessly.
Next, focus on modularizing the entire architecture. Avoid relying on one massive, tangled cable bundle. Break the design down into manageable sub-assemblies. You can divide the architecture into distinct physical zones. Modularity allows your team to process multiple sections simultaneously. You avoid sequential bottlenecks on the main line entirely. Workers can prep sub-assemblies offline before integrating them into the main chassis.
Finally, weigh standardization against extreme customization. Custom routing paths might save a few millimeters of internal space. However, standardized lengths improve supply chain resilience drastically. Standardized cables are much easier for automated machines to handle reliably. They reduce the number of unique part numbers in your inventory. This reduces procurement headaches. It also simplifies the complex programming required for pick-and-place robots. Adhering to standards like IPC/WHMA-A-620 ensures consistent quality across all your assembled units.
Engineers often debate the best integration method for custom energy storage. We must compare traditional setups against emerging Cell Contact Systems (CCS). CCS typically integrates Flexible Printed Circuits (FPC), Flat Flexible Cables (FFC), and rigid busbars. These modern technologies replace thick copper bundles entirely in many advanced designs.
Let us analyze the financial and physical implications. CCS requires significant upfront tooling investments. You must pay for custom molding and stamping dies before producing a single unit. However, it eliminates recurring manual labor expenses completely. It also avoids the heavy weight penalty of thick copper wire. For high-volume automotive runs, the financial break-even point arrives very quickly.
Automation readiness heavily favors CCS. Its rigid-flex properties make it inherently predictable. Robots can easily pick and place these flat components onto battery modules. Loose copper bundles simply cannot match this structural predictability. Cameras can also inspect flat circuits much faster than tangled wires.
Yet, we must acknowledge realistic reliability limitations. CCS greatly reduces manual connection errors. Still, traditional cables remain strictly necessary in specific extreme environments. Off-road applications demand extreme physical flexibility. They require high-vibration tolerance over rough terrain. In these scenarios, traditional heavy-duty copper solutions often outlast rigid FPC boards. You must evaluate your specific environmental requirements carefully.
Evaluation Dimension | Traditional Wire Bundles | Cell Contact Systems (CCS) |
|---|---|---|
Upfront Tooling Cost | Low (Minimal custom dies required) | High (Requires custom molds and stamping) |
Recurring Labor Cost | High (Heavy reliance on manual routing) | Low (Highly automated placement) |
Weight Profile | Heavy (Thick copper strands) | Lightweight (Thin printed circuits) |
Automation Readiness | Poor (Flexible and unpredictable) | Excellent (Rigid-flex stability) |
Vibration Tolerance | Very High (Absorbs extreme shocks) | Moderate (Susceptible to cracking under stress) |
A reliable layout directly impacts how you deploy inline testing stations. You need a unified Battery Pack Production and Testing Equipment Solution to validate electrical integrity safely. Proper integration prevents testing phases from slowing down overall factory throughput. Testing must happen seamlessly alongside physical assembly.
Let us look at essential validation checkpoints. Automated Optical Inspection (AOI) verifies physical routing paths instantly. High-resolution cameras and specialized lighting confirm every cable sits correctly. Meanwhile, continuity and hi-pot testing stations validate electrical safety. They apply high voltages to ensure insulation integrity and check for dielectric breakdown. This ensures no shorts exist within the system.
However, engineers face a common implementation risk here. Testing equipment connectors wear down over thousands of mating cycles. Spring-loaded pogo pins degrade rapidly under constant friction. Worn connectors cause high false-positive failure rates at EOL stations. Operators waste time re-testing good units. You must design layouts containing robust, easily accessible test points. Do not force test probes to mate directly with delicate operational pins. Provide dedicated test pads instead.
Finally, integrate modern traceability mechanisms into your design. Incorporate barcode labels or RFID tags directly into the assembly. This ensures seamless lifecycle tracking across the factory floor. It simplifies regulatory compliance tracking for safety audits. It also speeds up root-cause analysis if field failures occur months later.
Facility requirements shift drastically based on the end-product. Power outputs and regulatory demands dictate your specific manufacturing approach. Consider the deployment of a Low-Voltage Power Battery Pack Solution. These applications include e-bikes, power tools, and residential stationary storage. Here, the focus remains on high-mix, low-volume agility. The facility requires rapid changeovers to accommodate varying physical dimensions. Flexibility outweighs raw speed. You need stations capable of adjusting to different form factors instantly.
Contrast this heavily with high-voltage mobility applications. Manufacturing a High- and Low-Speed Vehicle Components Solution introduces stringent safety requirements. You must integrate advanced electromagnetic shielding. You must strictly enforce high-voltage isolation protocols according to international safety standards. The physical barrier requirements are much higher to protect end-users from electrocution.
To manage these vast differences, you need the right integration partner. Buyers should look for vendors meeting specific technical criteria. Evaluate your options based on their demonstrated engineering capabilities.
Proven success integrating automated cable handling mechanisms for high-voltage systems.
Deep expertise in precision laser welding for critical terminal connections.
Strong capabilities for seamless inline electrical testing integration.
Advanced software frameworks for real-time traceability and compliance data management.
Flexible tooling options engineered to support rapid product changeovers.
Electrical routing must serve as a primary driver of overall assembly line efficiency, not an afterthought.
Early integration of Design for Manufacturability (DFM) prevents severe bottlenecks and costly scrap rates later.
Moving to Cell Contact Systems offers massive automation benefits for high-volume production runs.
Technical buyers should audit their current CAD designs immediately to identify automated manufacturing constraints.
Resolve these design limitations before finalizing any equipment procurement RFPs to ensure smooth factory scaling.
A: Connector mating failures and routing misalignments are the biggest culprits. Automated robots struggle to process flexible materials precisely. When cables drift out of tolerance, they cause severe pinch hazards during final enclosure sealing. This forces operators to stop the line to manually correct the routing, destroying Takt times.
A: The transition makes financial sense when labor savings outpace tooling amortization. High-volume, standardized production runs quickly justify the steep initial tooling costs of CCS. Conversely, low-volume or highly customized prototypes generally favor manual harnesses. You must calculate the break-even point based on your specific annual production targets.
A: Poor design forces test operators to struggle with fragile connectors. This drastically increases cycle times per unit. By designing robust, highly accessible test points into the harness, you allow rapid probe engagement. This simple step prevents connector durability issues and slashes your overall EOL testing durations.
A: Yes, but it requires careful planning. A mixed-use line demands modular tooling for rapid changeovers. High-voltage units require distinct testing station isolation and strict safety compliance measures. You must design the line software to recognize the product variant and enforce the correct safety parameters automatically.
