Commercial EV charging infrastructure faces a critical operational bottleneck today. Grid capacity limitations and punitive peak demand tariffs halt many expansion projects before they even break ground. Upgrading utility transformers is frequently unviable from an engineering and timeframe perspective. You often face immense utility delays and severe structural hurdles when requesting massive grid-tie improvements. Because of this harsh reality, the industry shift toward microgrid-style architectures is no longer a mere trend. It represents an urgent operational necessity.
A properly engineered photovoltaic system paired alongside localized energy storage completely mitigates these grid constraint risks. It stabilizes energy flow, secures power availability, and unlocks entirely new revenue streams for station operators. You will learn how to structure these complex systems effectively. This guide outlines vital architectural decisions and hardware evaluation criteria. We also explore the precise implementation risks you must navigate to specify a resilient, high-performing charging station.
Integrating solar, storage, and EV charging shifts energy consumption from high-tariff grid periods to self-generated or low-tariff stored energy, significantly reducing Total Cost of Ownership (TCO).
Selecting the right battery energy storage system and power conversion topology determines the operational ceiling of your fast-charging capabilities.
Successful deployment requires rigorous upfront site analysis to prevent solar yield vs. charging demand mismatches and navigate complex interconnection compliance.
Deploying Level 3 DC Fast Chargers (DCFC) directly to the public grid presents severe engineering challenges. Without localized storage integration, you hit an immediate grid capacity bottleneck. A typical commercial charging plaza might demand several megawatts instantly when multiple vehicles connect. Traditional local utility grids simply fail to support this sudden massive power draw. Consequently, high grid-tie upgrade requirements cause prolonged utility permitting delays. Site hosts often wait months or even years for utility companies to perform necessary transformer upgrades.
Beyond the physical limitations, peak EV charging loads trigger aggressive utility demand tariffs. These sudden spikes draw massive localized power. Utility companies penalize facilities for these rapid demand surges. Integrated storage absorbs these rapid spikes effectively. We call this process peak shaving and load shifting. System batteries deploy stored power specifically during high-demand vehicle surges. This action effectively masks the load, preventing the utility meter from registering the extreme grid draw.

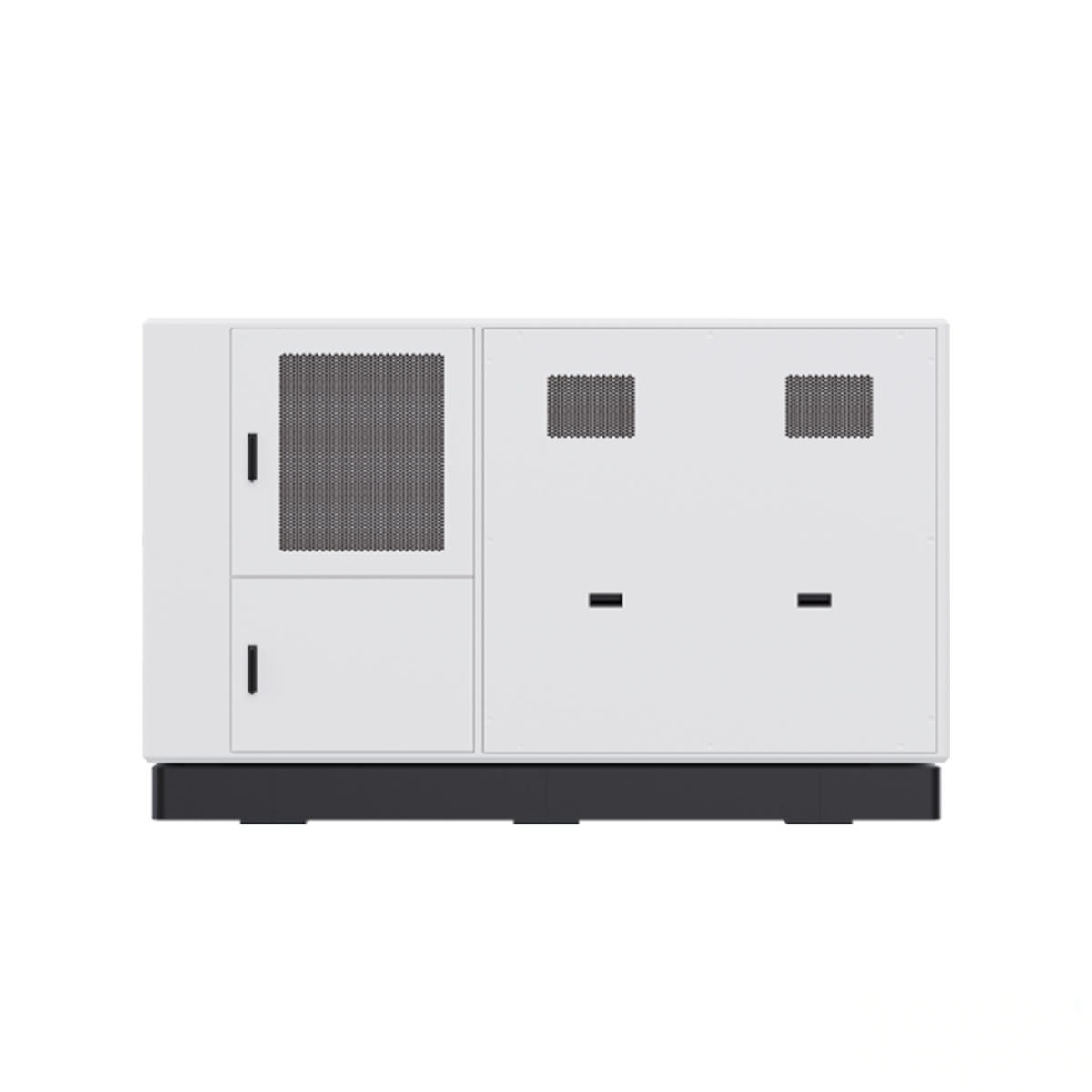

By utilizing a comprehensive photovoltaic storage charging integrated solution, you create an autonomous energy hub. This strategic approach decouples your charging operations from volatile utility rate fluctuations. You capture free solar energy, store it locally within heavy-duty battery arrays, and dispense it to vehicles precisely when grid power is most constrained. This transformation turns a vulnerable grid-dependent site into an independent, resilient power asset.
System design frameworks generally fall into two distinct engineering categories. You must choose between AC-coupled and DC-coupled topologies. This foundational choice dictates your overall conversion efficiency and spatial footprint requirements.
This traditional design relies on separate independent inverters. The solar arrays, energy storage units, and EV chargers tie together at a centralized AC bus. We recommend this approach primarily for retrofitting existing solar arrays. It also works well when your physical assets sit geographically dispersed across a massive commercial site.
However, you face notable operational trade-offs. The system suffers multiple conversion losses throughout its daily cycle. Power constantly converts from DC to AC and then back to DC before reaching the vehicle. You also face a higher aggregate hardware footprint due to redundant inverter equipment required at each asset phase.
In this modern framework, solar generation, chemical storage, and vehicle charging link directly via a centralized DC bus line. This precise topology suits greenfield commercial deployments perfectly. You maximize energy power density and eliminate unnecessary conversion losses entirely.
This specific design requires a highly efficient Solar Storage Inverter to manage complex bidirectional power routing. Because everything operates on a shared DC bus, you must ensure strict component compatibility across all linked hardware.
Common Mistakes: Many engineers mistakenly specify AC-coupled architectures for brand-new site builds out of habit. This wastes physical space and surrenders several percentage points of overall system efficiency.
System Characteristic | AC-Coupled Systems | DC-Coupled Systems |
|---|---|---|
Inverter Architecture | Separate inverters for every connected asset | Centralized bidirectional routing inverter |
Conversion Losses | High (Due to repeated DC-AC-DC flipping) | Low (Electrons remain in DC state) |
Primary Application | Retrofitting existing sites or dispersed layouts | Greenfield new builds requiring high efficiency |
Hardware Footprint | Larger (Requires redundant conversion boxes) | Compact (Streamlined shared infrastructure) |
Procurement criteria must reflect hardware limitations observed in the real world. Relying solely on laboratory specification sheets leads to rapid component failure. We must evaluate several critical dimensions carefully before finalizing vendor selections.
When selecting a commercial battery energy storage system, chemical composition matters immensely. You must compare Lithium Iron Phosphate (LFP) against Nickel Manganese Cobalt (NMC). Always prioritize LFP chemistries for stationary commercial use. LFP provides superior cycle life and exceptional thermal stability under continuous stress. LFP also lacks cobalt, making its supply chain far more predictable.
You must also define specific C-Rate requirements accurately. Match your battery discharge rates to your expected EV fast-charging peak loads. A low C-rate battery will severely bottleneck a high-output DCFC dispenser, rendering your fast chargers useless during peak traffic hours.
Evaluate all thermal management systems rigorously. Continuous high-load environments demand robust cooling frameworks. Liquid cooling generally outperforms forced air cooling under heavy commercial stress, specifically in hot geographic climates. Additionally, assess fault tolerance thoroughly. Ensure your power conversion equipment supports robust islanding capabilities. This unique feature allows your charging station to disconnect from the main grid safely and continue dispensing power during broader regional grid outages.
Accurate, real-time data tracking remains strictly non-negotiable. A dedicated Smart Energy Meter provides real-time phase balancing and granular dynamic load management. It guarantees utility-grade billing accuracy across all connected dispensers. The meter integrates seamlessly with your central Energy Management Systems (EMS). This external communication utilizes the Open Charge Point Protocol (OCPP) to broadcast usage metrics continuously.
Site demand changes dynamically over time. You might need to deploy mobile energy storage charging equipment to handle unforeseen traffic surges. These specialized modular assets support phased rollouts perfectly. They handle seasonal highway demand spikes smoothly without requiring permanent foundation pouring. You can also utilize them temporarily at grid-constrained sites currently waiting for permanent utility transformer upgrades.
To ensure hardware viability, verify these three essential factors:
Component thermal limits during extreme summer operation.
Cycle degradation warranties tied directly to usage volume.
Communication module compatibility with open-source platforms.
The software layer dictates absolute system efficiency. Dynamic routing algorithms optimize exactly how power moves between the sun, the batteries, and the vehicles.
Your system requires both local edge computing and remote cloud controls. Latency-sensitive actions must live directly on the local edge. Fault protection mechanisms, rapid breaker trips, and emergency shutdowns require instant execution. Cloud latency makes remote safety controls incredibly dangerous. Conversely, broad economic optimization lives safely in the cloud. Tariff tracking, fleet schedule integration, and predictive weather modeling require heavy remote processing power.
An advanced EMS executes multiple dispatch strategies automatically to maximize system efficiency:
Self-consumption maximization: The system stores daytime solar power aggressively to charge evening fleet vehicles, minimizing wasted solar export.
Time-of-Use (TOU) arbitrage: The battery bank charges entirely from the grid when energy rates drop overnight. It then discharges this stored energy during expensive peak afternoon windows.
Dynamic power capping: The software continuously monitors the main electrical breaker panel. If the total facility load approaches the physical panel limit, the EMS throttles the EV charger output instantly to prevent catastrophic main breaker trips.
Prepare your foundational EMS logic for bidirectional V2G (Vehicle-to-Grid) integration immediately. Commercial fleet operations will soon require delivery vehicles to discharge unused power back into the local microgrid. Ensuring your software architecture supports bidirectional electron flow today prevents massive overhaul costs tomorrow.
Deploying heavy commercial infrastructure introduces significant friction. We must address these regulatory and environmental realities head-on to prevent project stalling.
Solar generation peaks exactly at midday when the sun sits highest. However, commercial EV charging demand often spikes severely in the late afternoon or evening. This specific yield-demand mismatch represents a major engineering challenge. You must size your localized storage capacity accurately to bridge this precise temporal gap. An undersized battery bank leaves you reliant on expensive grid power precisely when utility rates peak. Conversely, an oversized battery bank strands valuable capital.
Stationary chemical storage brings severe operational fire risks. Thermal runaway events remain rare but prove catastrophic when they occur. You must navigate compliance frameworks rigorously. Adhere closely to NFPA 855 and UL 9540 standard guidelines. Furthermore, local AHJ (Authority Having Jurisdiction) spacing requirements vary wildly across municipalities. Some local fire marshals demand massive ten-to-fifty-foot physical setbacks between battery containers and adjacent property lines. Plan your site footprint accordingly.
Connected energy infrastructure faces constant remote threat vectors. You must harden the primary communication layer completely. Secure the digital links between your EMS platform, the physical EV chargers, and the central grid. Software vulnerabilities here can compromise local grid integrity and expose customer data. Implement strict end-to-end encryption protocols and mandate regular third-party security audits.
Procuring the right physical equipment minimizes eventual buyer's remorse and eliminates severe integration headaches. Follow strict evaluation criteria when reviewing hardware manufacturers.
Avoid closed hardware ecosystems completely. Insist exclusively on standardized protocols like OCPP 1.6J or 2.0.1 and Modbus TCP. Open communication standards prevent dangerous vendor lock-in down the road. If a proprietary hardware manufacturer goes out of business, their closed-loop equipment instantly becomes a stranded asset.
Evaluate component warranty terms carefully. Do not judge a commercial battery warranty purely by chronological years. You must measure it by functional throughput, specifically the total Megawatt-hours (MWh) cycled. High-utilization charging stations will burn through chronological warranties rapidly. A battery discharged twice daily degrades much faster than one discharged weekly. Demand warranties tied strictly to operational energy throughput.
Cobbling together multi-vendor hardware creates massive hidden integration costs. Engineering teams inevitably waste hundreds of hours resolving obscure software handshakes between mismatched components. We strongly recommend utilizing a unified photovoltaic storage charging integrated solution whenever possible. Turnkey systems guarantee complete component compatibility right out of the box, reducing your deployment timeline significantly.
Integrating massive solar arrays, localized chemical storage, and high-speed EV dispensers is no longer a pilot-project novelty. It currently stands as a strict foundational requirement for high-capacity charging deployments. We see this resilient architecture dominating the commercial landscape as local utility grids continue to struggle with immense power demands. Prioritize system modularity during your initial design phases to ensure future expansion capabilities. Mandate standard-compliant communication protocols across all procured hardware. Conduct rigorous site-load profiling before executing any major procurement orders to avoid sizing mismatches.
We strongly advise adopting a proactive engineering approach. Prompt your internal facility team to request a comprehensive technical site audit today. You should also download detailed engineering specification sheets to analyze your baseline energy efficiency accurately before breaking ground.
A: Local utility demand charges heavily dictate your specific commercial payback period. Regions imposing punitive peak tariffs offer the absolute fastest returns. Federal and local clean energy incentives also accelerate this timeline significantly. A well-optimized commercial system typically achieves a positive return on investment within three to seven years.
A: Yes, but critical distinctions matter. A grid-tied system with backup capabilities relies on utility power for baseline stability. True off-grid configurations run entirely autonomously. Off-grid systems require significantly larger solar arrays and massively oversized battery banks to guarantee continuous charging availability during prolonged stretches of severe weather.
A: Space requirements scale directly with your peak capacity needs. Cabinet-level battery deployments generally occupy the footprint of one to two standard parking spaces. Large-scale containerized megawatt systems require specialized heavy-duty concrete pads. They often consume the equivalent of four to six parking spots once you factor in mandatory fire safety setbacks.
